ကျွန်တော် sharing လုပ်ချင်တာ က VMWare ESXi or vCenter ကို Ansible သုံးပြီး ဘယ်လို Automate လုပ်ရမလဲကို sharing လုပ်ချင်ပါတယ်.

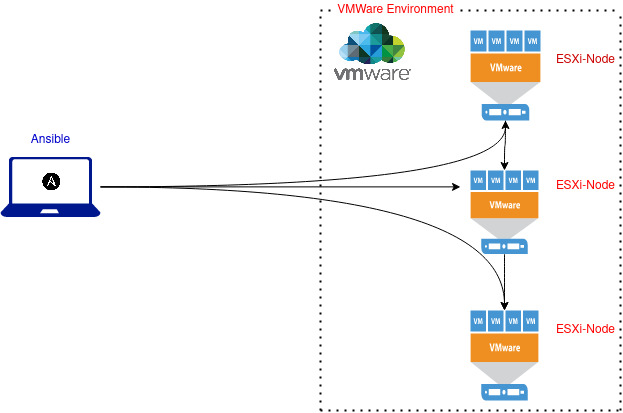

အရင်ဆုံး ကျွန်တော်တို့ High Level Design ( HLD ) ကို ကြည့်ရအောင်.
*Prerequisites*
- Linux, Mac, or WSL Terminal with ( Bash or Z Shell )
- Python Library For VMWare API Management
- Ansible
- Microsoft VSCode or IDE
- VMWare ESXi Server Physical or Virtual Machine
- VMWare ESXi License Key for API Access

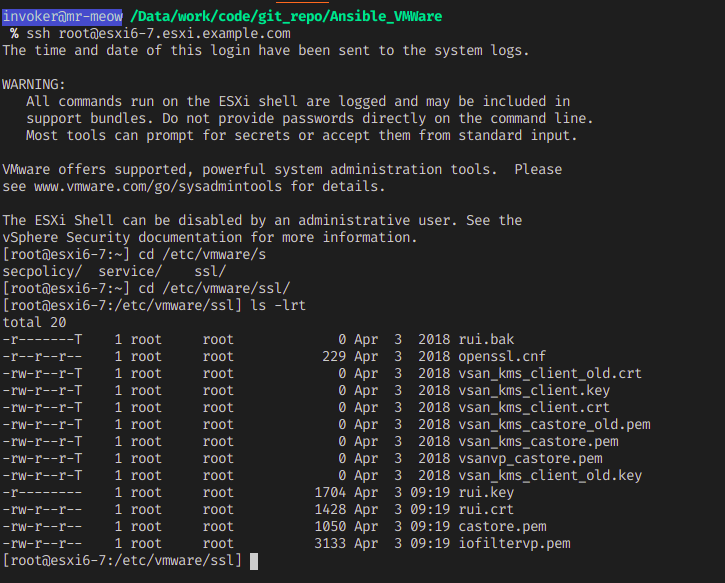

- vCenter or ESXi server SSL Certificate
- Ansible Inventory and Test Playbook
*Linux, Mac, or WSL Terminal with ( Bash or Z Shell )*
ကျွန်တော်က ubuntu 20.04 နဲ့ Z Shell ကို သုံးထားပါတယ်. Bash ကိုလဲသုံးလို့ရပါတယ်.

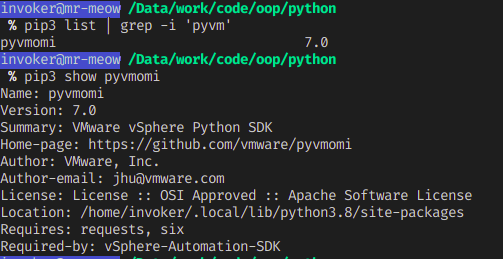

*Python Library For VMWare API Management*
ကျွန်တော်အရင်ဆုံး vSphere Automation Python SDK ကို install လုပ်ပါမယ်. တစ်ကယ်လို့ vSphere Automation Python SDK ကိုမသုံးခြင်ရင်လဲရပါတယ်. လိုအပ်တဲ့ python library ကို install လုပ်လဲရပါတယ်.

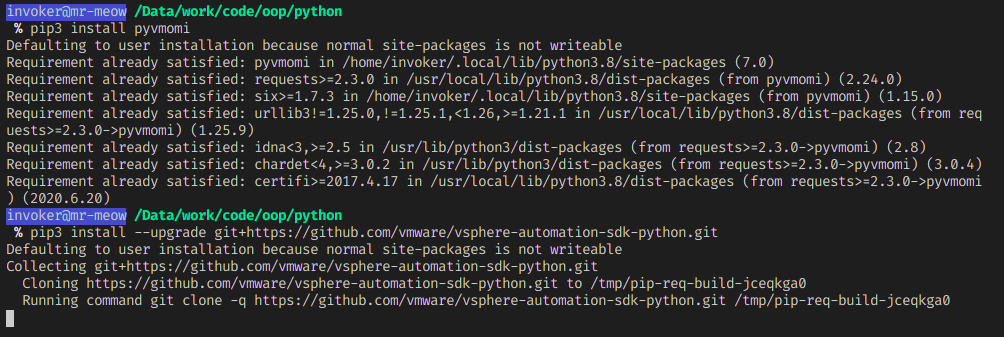

#python library
> pip3 install pyvmomi
#vSphere Automation Python SDK
> pip install –upgrade git+https://github.com/vmware/vsphere-automation-sdk-python.git
*Ansible*
Ansible ကို apt, yum or pip တိုနဲ့ install လုပ်ပါ.
ကျွန်တော်က apt နဲ့ install လုပ်ထားပါတယ်.
*Microsoft VSCode or IDE*

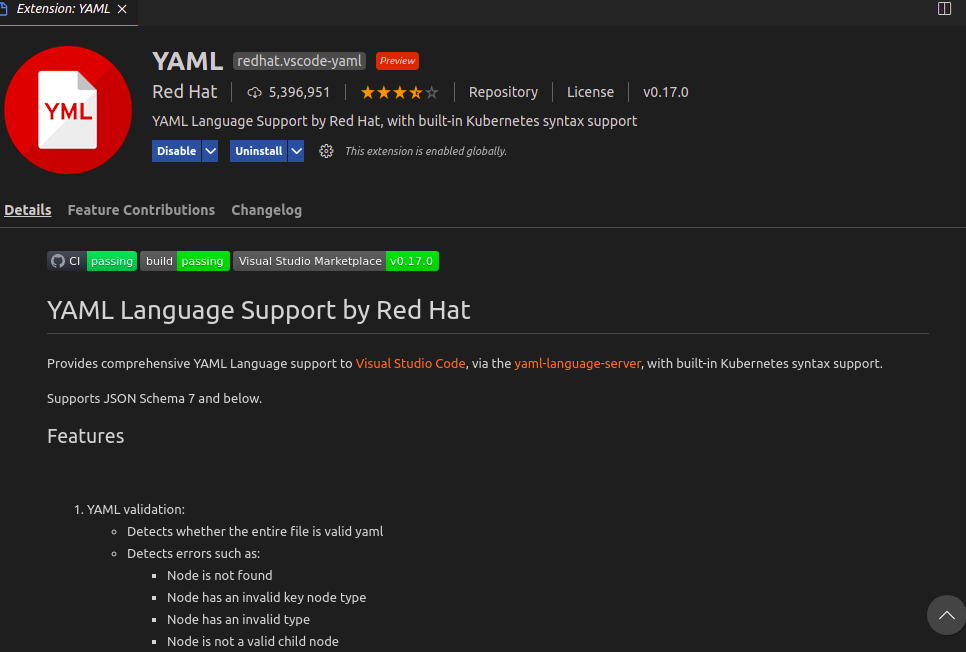

ကျွန်တော် က MS VSCode ကို သုံးထားပါတယ်. ကိုယ်ကြိုက်ရာ IDE ကိုသုံးလို့လဲရပါတယ်. Ansible Playbook ရေးရာမှာ Identation နဲ့ syntax highlighting အတွက် VSCode မှာ Extensions ထည့်ပါ.
#For VIM User
တစ်ကယ်လို့ VIM ကို IDE အနေနဲ့ သုံးချင်ရင် .vimrc ဖိုင်မှာ Tab နဲ့ space ကိုပြောင်းလို့ရပါတယ်.
# .vimrc file
- shiftwidth: sw
- tabstop: ts
- expandtab: et
*VMWare ESXi Server Physical or Virtual Machine*
ကျွန်တော်က VMWare ESXi 6.7 ကို သုံးထားပါတယ်.
SSH Service ကို ESXi Web UI or Console မှာ ဖွင့်ပေးပါ.

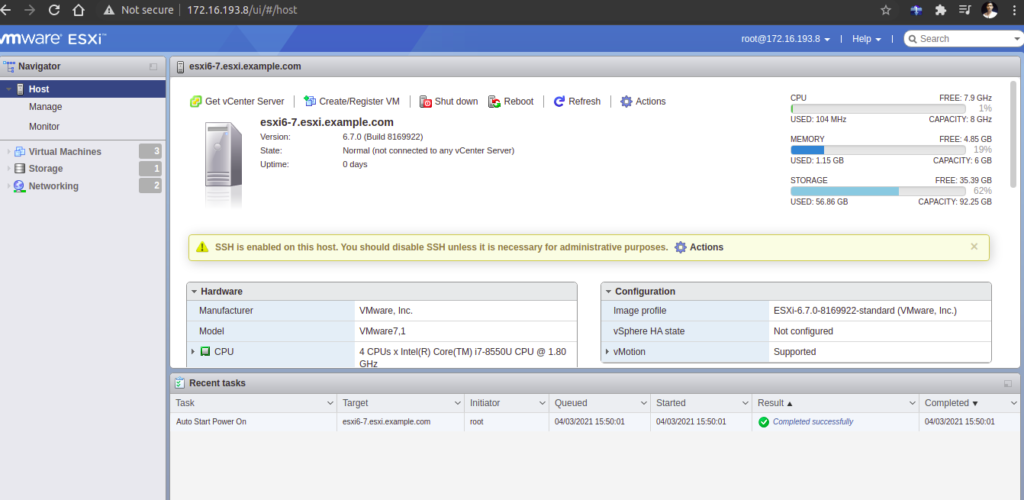

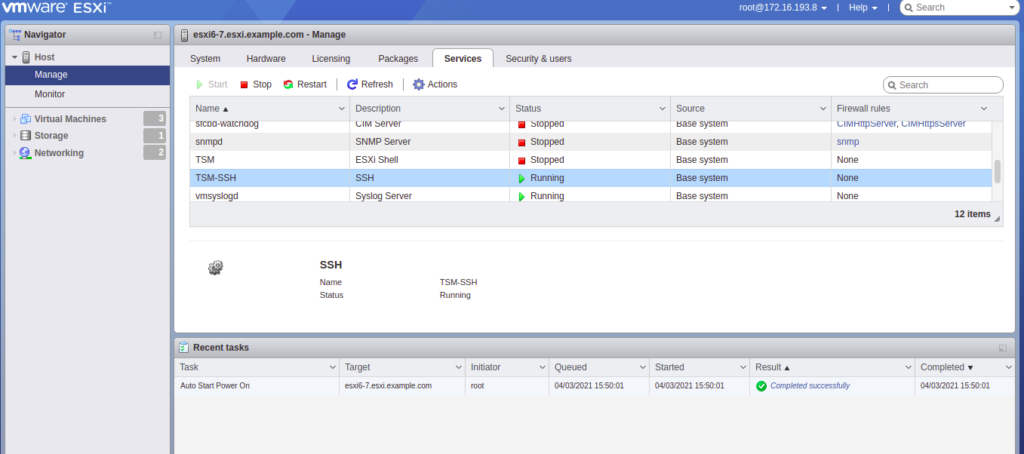

#From Web UI

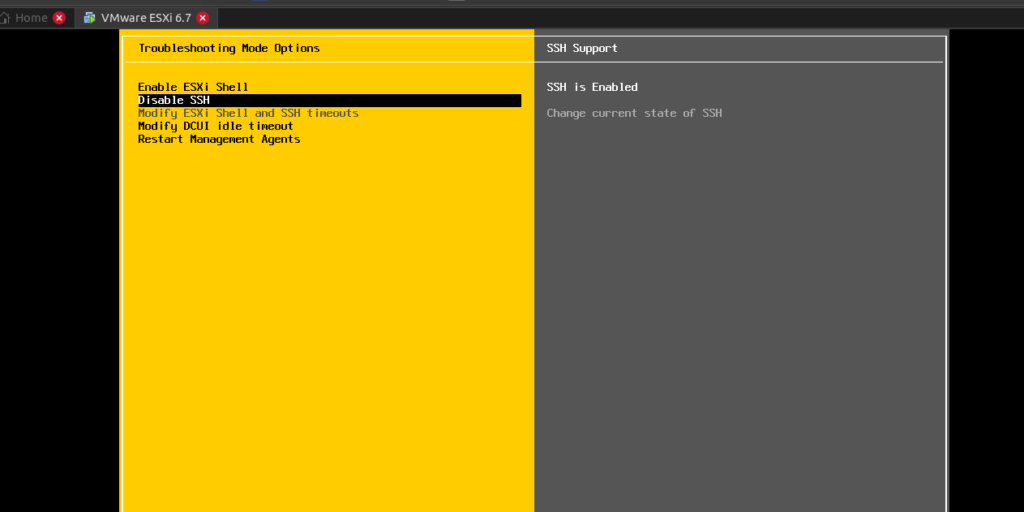

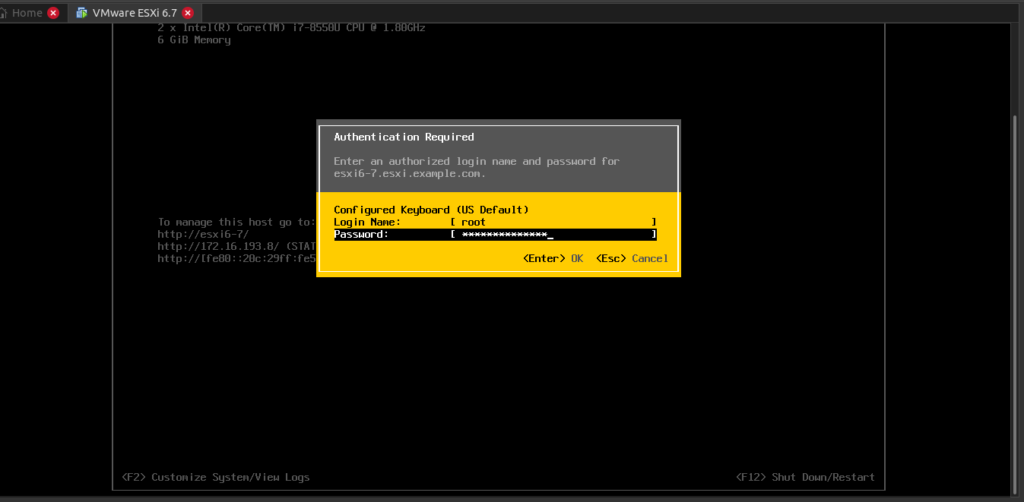

#From Console

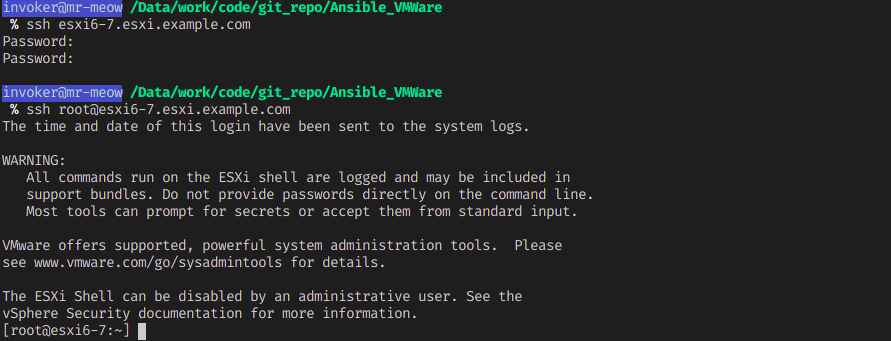

SSH Access ကို Test လုပ်ပါ.

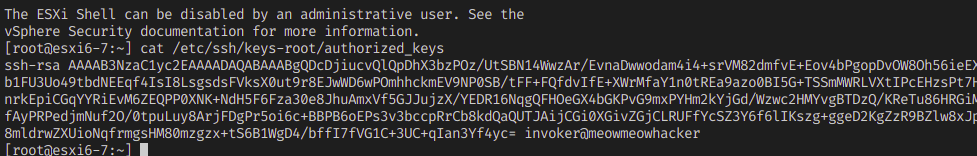

SSH Password မလိုဘဲ Access လုပ်ဖို့ အောက်ပါ absolute path မှာ public key ကို သွားသိမ်းပါ.
cat ~/.ssh/id_rsa.pub | ssh root@esxi6-7 ‘cat >> /etc/ssh/keys-root/authorized_keys’
SCP သုံးလဲရပါတယ်.

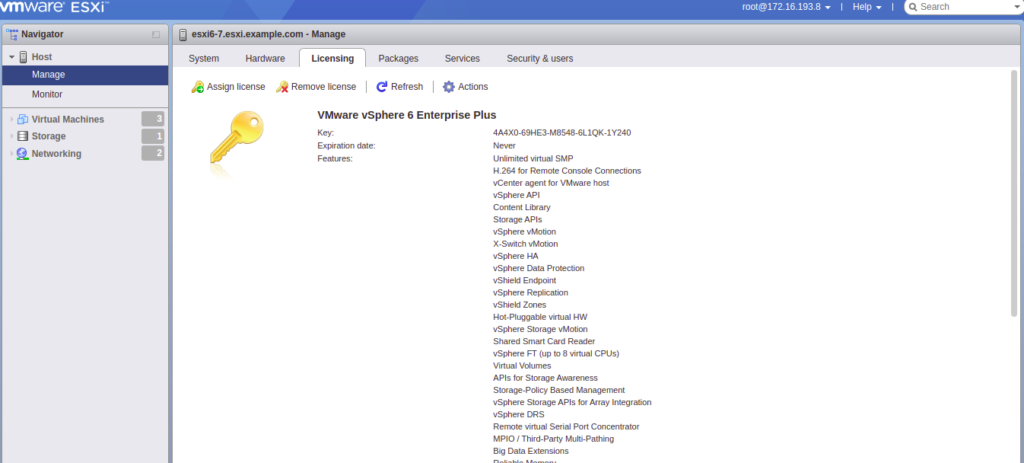

*VMWare ESXi License Key for API Access*
vSphere Automation API Access လုပ်ဖို့ license လိုပါတယ်.
*VMware vSphere ESXi 7.0 Enterprise Plus key*
JJ2WR-25L9P-H71A8-6J20P-C0K3F
HN2X0-0DH5M-M78Q1-780HH-CN214
JH09A-2YL84-M7EC8-FL0K2-3N2J2
vSphere Automation API နဲ့ Ansible connection ကို SSL နဲ့ သုံးချင်ရင် အောက်ပါ link မှာကြည့်ပါ.
https://docs.ansible.com/ansible/latest/scenario_guides/vmware_scenarios/vmware_requirements.html
*Ansible Inventory and Test Playbook*

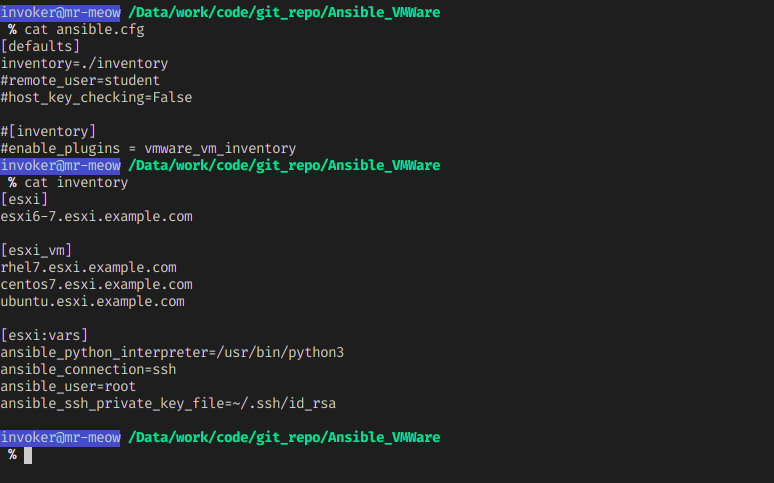

Ansible Inventory and Configuration File

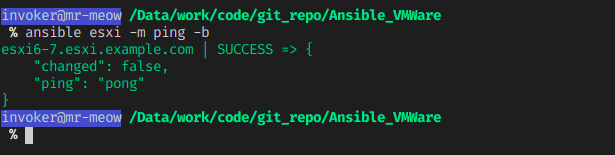

Ansible Ad-hoc Test
တစ်ကယ် SSL ကို မသုံးချင်ရင် Ansible Playbook မှာ “validate_certs: false” ကိုထည့်ရေးပါ.
တစ်ကယ်လို့ vSphere Automation API ကို အခြားစက်မှာ Install လုပ်ထားရင် delegate_to ကိုသုံးပါ.

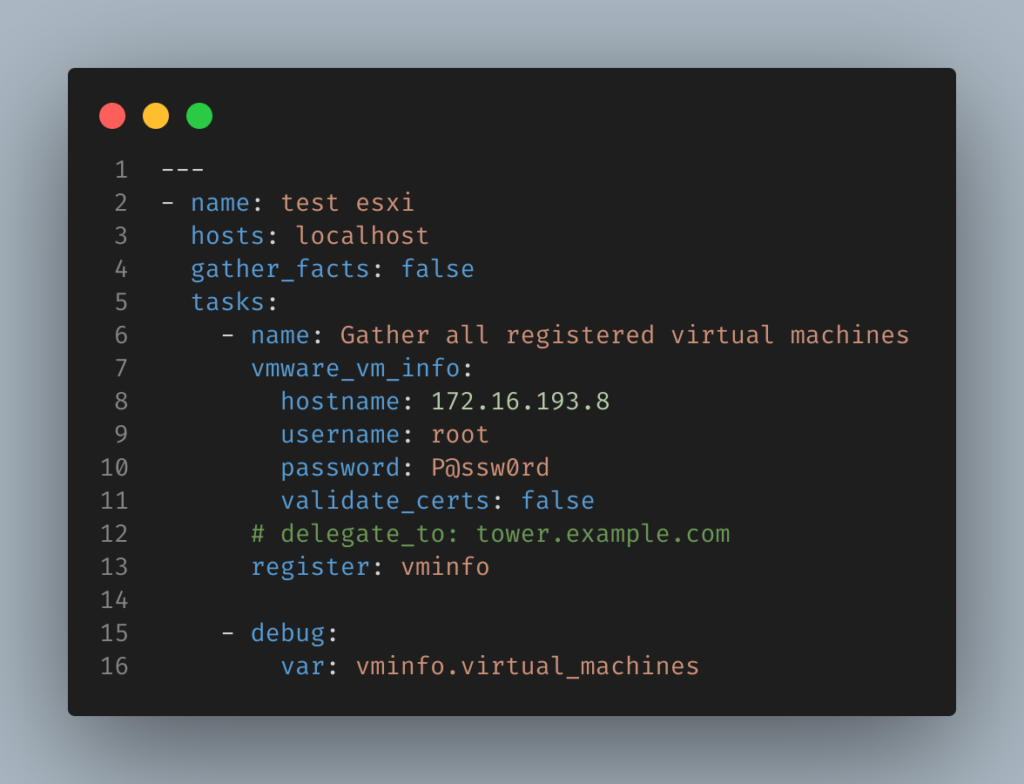

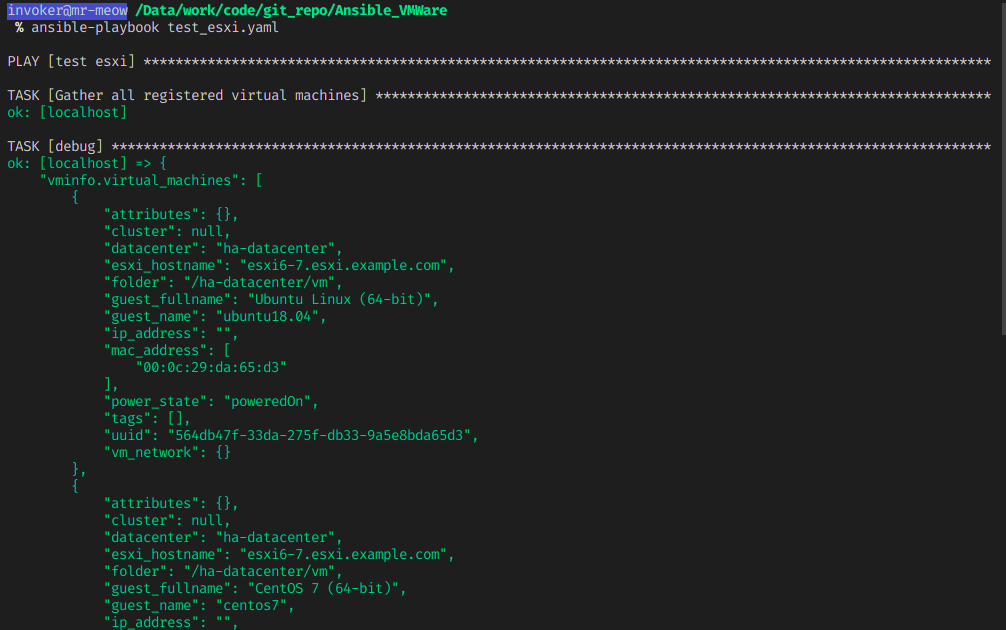

Ansible Test Playbook for VMWare ESXi
*Ansible playbook*
https://github.com/Htunn/Ansible_VMWare
#တစ်ကယ်လို့ Ansible ကိုဆက်လက်လေ့လာလိုလျှင်.
https://docs.ansible.com/ansible/latest/scenario_guides/guide_vmware.html
https://www.ansiblefordevops.com/
*Thank For Your Time, Mate*
